Performance tracing for HAR

ATrace performs performance tracing for HAR using the external crate tracing_android_trace.

Enable tracing for HAR

To enable performance tracing for the reference harry-app, enable the Cargo feature harry-app-platform-specific/tracing-android.

# crates/reference/harry-app/Cargo.toml

harry-sdv = ["harry-app-platform-specific/tracing-android", ...]

Add custom traces to HAR

  • To add a custom span, use a span from the tracing crate.
    let custom_trace = tracing::info_span!("custom_trace_span").entered()
    // code here will be traced
    drop(custom_trace)

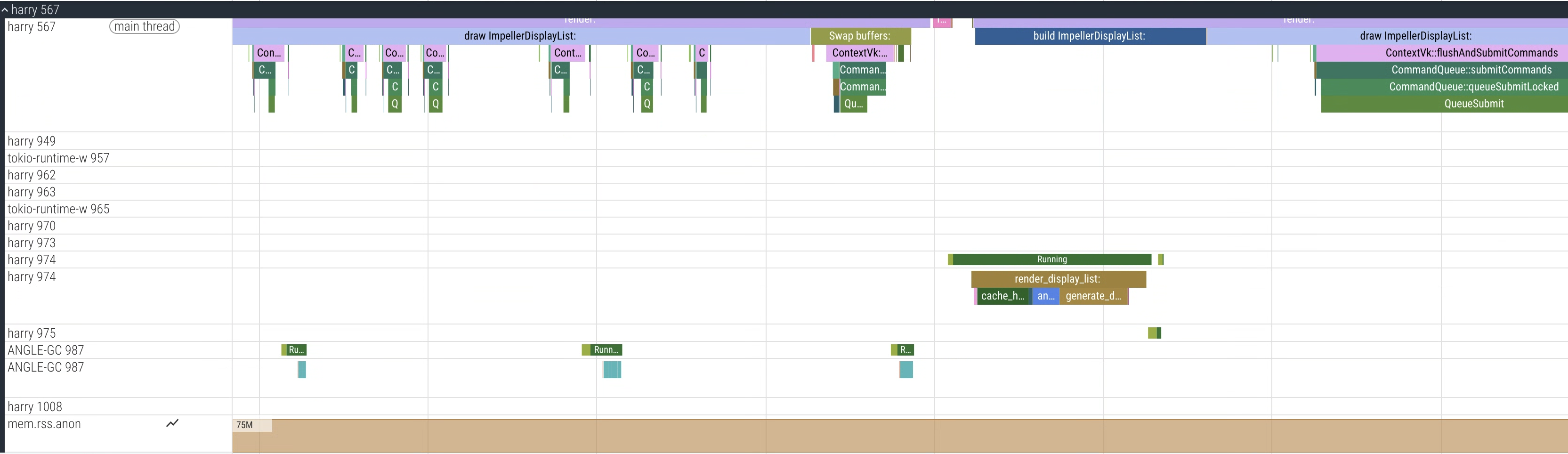

Figure 1. Perfetto UI showing a sample trace from the harry process (HAR)

Performance tracing for DriverUI

DriverUI uses Android system tracing; no extra configuration is required.

Add custom traces to DriverUI

You can add custom events to Kotlin code using the Developer Guide.

Collect a trace

We recommend Torq to collect traces on AAOS.

Use Torq

Torq is a CLI tool for collecting performance traces on AAOS and SDV.

  1. Clone the Torq repository.

  2. Follow instructions in the repository to build and then run:

export ANDROID_SERIAL=<your_device_serial>
# Collect a 7 second trace
torq -d 7000

Collect a unified performance trace across both VMs

Because Display Safety runs across two VMs, collecting traces from both VMs at the same time helps identify issues.

  • Torq supports unified traces through Perfetto's traced_relay.
  • To capture a unified trace, first identify the cid for both VMs:
# Get the cid for SDV Media VM. For example: 3
adb -s <sdv_media_vm_serial> shell getprop ro.sdv.vsock_local_cid

# Get the cid for SDV IVI VM. For example: 4
adb -s <sdv_ivi_vm_serial> shell getprop ro.sdv.vsock_local_cid

In this example, use the SDV-Media VM (cid=3) as a relay.

# Configure your VMs for unified tracing
torq vm configure --primary <sdv_ivi_vm_serial> --primary-cid 4 --secondary <sdv_media_vm_serial>
# Collect a 7 second trace from the SDV IVI VM, it will now collect a unified trace
torq --serial <sdv_ivi_vm_serial> -d 7000

For example:

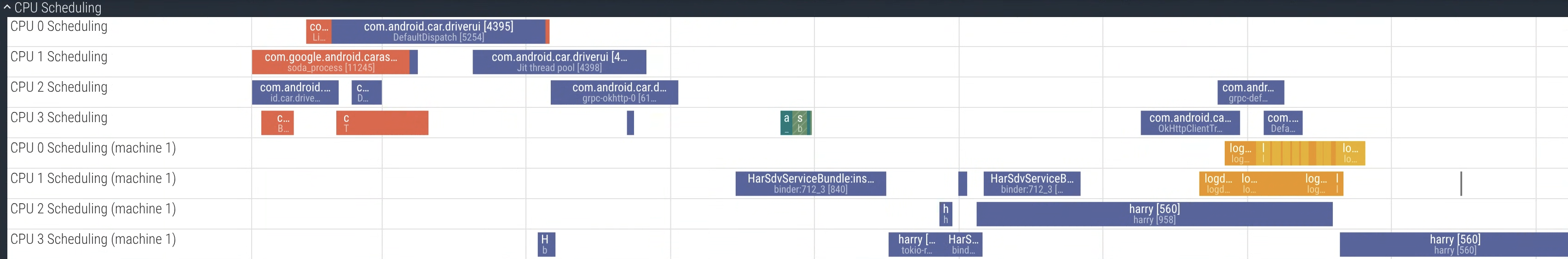

Figure 2. Perfetto UI showing a sample Unified Trace with both processes from both VMs: harry (HAR) and com.android.car.driverui (DriverUI).

Collect a boot trace

To collect a boot trace for analyzing boot performance, you must enable a few flags.

  1. Set the SDV-specific persistence flag for boot traces.

    export ANDROID_SERIAL=<your_device_serial>
adb root
adb shell setprop persist.debug.sdv.boottrace 1
adb shell setprop persist.debug.perfetto.boottrace 1

  2. Set kernel cmdline parameter androidboot.fastboot.boottrace=enabled.

# For Cuttlefish, set when creating CVD
cvd create -extra_kernel_cmdline=androidboot.fastboot.boottrace=enabled

Use record_android_trace

Do the following:

# Set your adb device serial
export ANDROID_SERIAL=<your_device_serial>
# Run record_android_trace from the Android repo
cd /<your_repo_path>
build/envsetup.sh

$ANDROID_BUILD_TOP/external/perfetto/tools/record_android_trace --config $ANDROID_BUILD_TOP/system/software_defined_vehicle/core_services/samples/tracing/config/trace_cfg.pbtx
