語言規格

start VsidlEntry =
  "package" , ":" , String , ";" ,
  { "service_bundle" , ServiceBundle } ,
  { "extension" , ":" , Any } ,
  { "some_ip_mapping" , ":" , SomeIpMapping } ,
  { "vhal_mapping" , ":" , VhalMapping }
;

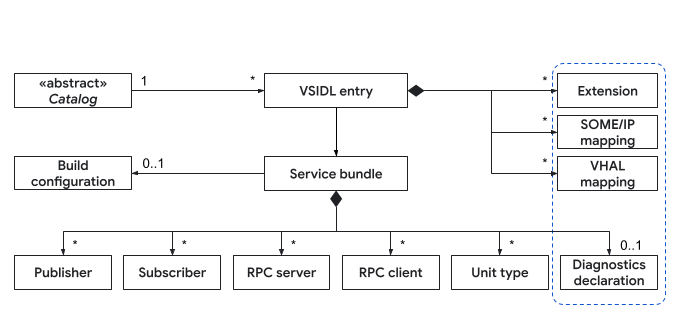

// The root message for VSIDL files
message VsidlEntry {
  // Required. Package name for entities mentioned in the file.
  string package = 1;
  // Enables custom extensions beyond the standard VSIDL model.
  repeated google.protobuf.Any extension = 3;

  // SOMEIP mapping rules
  repeated sdv.someip.v1.SomeIpMapping some_ip_mapping = 4;
  // VHAL mapping rules
  repeated VhalMapping vhal_mapping = 5;
  // List of SDV service bundles defined in the file.
  repeated ServiceBundle service_bundle = 6;
}

package: "com.android.sdv.sample.vsidl"

service_bundle {
  name: "Manager"

  publisher {
    message: "TirePressure"
    topic: "front-left"
    topic: "front-right"
    capacity: 10
  }
}

ServiceBundle = "{" , { ServiceBundleElement } , "}" ;

ServiceBundleElement =
  "name" , ":" , String |
  "publisher" , Publisher |
  "subscriber" , Subscriber |
  "server" , Server |
  "client" , Client |
  "extension" , ":" , Any |
  "diagnostics_declaration" , DiagnosticsDeclaration |
  "build_cfg" , BuildConfiguration |
  "register_reflection_metadata" , Boolean
;

// Defines an SDV service
message ServiceBundle {
  // Required. Name of the service bundle (without the package name).
  string name = 1;
  // List of publications the service bundle provides.
  repeated Publisher publisher = 2;
  // List of publications a service bundle subscribes to.
  repeated Subscriber subscriber = 3;
  // RPC services offered by a service bundle.
  repeated Server server = 4;
  // RPC services consumed by a service bundle.
  repeated Client client = 5;
  // Enables custom extensions beyond the standard VSIDL model.
  repeated google.protobuf.Any extension = 7;

  // Diagnostics declarations
  sdv.diagnostics.v1.DiagnosticsDeclaration diagnostics_declaration = 8;

  // Build Configuration
  optional BuildConfiguration build_cfg = 9;

  // Register metadata for service units provided by this service bundle.
  // Setting this to true will increase the memory footprint
  // and network load significantly.
  bool register_reflection_metadata = 10;
}

service_bundle {
    name: "SeatController"

    publisher {
      message: "SeatHeating"
      topic: "driver-seat"
      capacity: 10
    }
}

Publisher = "{" , { PublisherElement } , "}" ;

PublisherElement =
  "message" , ":" , String |
  "topic" , ":" , String |
  "capacity" , ":" , Integer |
  "service_unit_name" , ":" , String
;

// Represents a publisher within a service bundle.
message Publisher {
  // Name of the service unit. Name may only use characters from [a-z0-9\-]+,
  // must start with [a-z], may not end with a hyphen,
  // and may not contain consecutive hyphens.
  string service_unit_name = 3;
  // Required. The type of data being published.
  string message = 4;
  // Required. The number of messages a publication queue can hold.
  // Must be an even number >= 2.
  int64 capacity = 6;
  // Required. Unique identifier for the publication topic.
  // Must be in lowercase dash-case.
  repeated string topic = 7;
}

publisher {
  message: "SeatHeating"
  topic: "driver-heating"
  capacity: 10
}

# VALID: A publisher assigns a user-defined name to a single instance
publisher {
  message: "SeatHeating"
  topic: "seat-heating-status"
  service_unit_name: "heating-is-off"
}

# ERROR: user-defined names are only allowed if there's only a single instance
publisher {
  message: "SeatHeating"
  topic: "seat-heating-status"
  service_unit_name: "heating-status"
}

Subscriber = "{" , { SubscriberElement } , "}" ;

SubscriberElement =
  "message" , ":" , String |
  "topic" , ":" , String
;

// Represents a subscriber within a service bundle.
message Subscriber {
  // Required. The type of data being subscribed to.
  string message = 4;
  // Required. Specific topic(s) of the message to subscribe to.
  // Must match the publisher's topic.
  repeated string topic = 6;
}

subscriber {
  message: "SeatHeating"
  topic: "driver-seat"
}

Server = "{" , { ServerElement } , "}" ;

ServerElement =
  "service" , ":" , String |
  "channel" , ":" , String |
  "service_unit_name" , ":" , String
;

// Represents an RPC server within a service bundle.
message Server {
  // Deprecated. Name of the service unit.
  string service_unit_name = 3 [ deprecated = true ];
  // Required. Name of the RPC service.
  string service = 4;
  // Required. Name of the RPC channel.
  // Must be in lowercase dash-case.
  string channel = 5;
}

server {
  service: "SetTemperature"
  channel: "temp-setter"
}

Client = "{" , { ClientElement } , "}" ;

ClientElement =
  "service" , ":" , String |
  "channel" , ":" , String
;

// Represents an RPC client within a service bundle.
message Client {
  // Required. Name of the RPC service.
  string service = 2;
  // Required. Name of the RPC channel.
  // Must match the server's channel and be in lowercase dash-case.
  string channel = 3;
}

client {
  service: "SetTemperature"
  channel: "temp-setter"
}

BuildConfiguration = "{" , BuildConfigurationElement, "}" ;

BuildConfigurationElement =
  "target_name" , ":" , String |
  "skip_codegen" , ":" , Boolean
;

// Defines additional information used to configure build settings
message BuildConfiguration {
  /// Build target name
  optional string target_name = 1;
  // Do not generate code for this service bundle
  optional bool skip_codegen = 2;
}

build_cfg {
  target_name: "my_custom_target_name"
  skip_codegen: false
}
