Ranging: Out-of-band specification version 3

Android 16 introduced the Ranging module. This protocol and payload specification defines the message sequence and the payload of out-of-band (OOB) communication used to exchange ranging configurations, and to start and stop ranging, between the initiator and the responder device that engage in ranging. Android 17 introduces version 3 of this specification.

This page enables non-Android device providers to implement this specification so that their devices are compatible with Android devices.

An implementation of this specification in Google's Packet Description Language (PDL) is available on GitHub. From this implementation, the PDL compiler can generate serialization and deserialization code for the messages defined in this specification. This specification supports a variety of target languages including C++, Rust, and Java.

What's new in version 3

Version 3 of the OOB specification introduces the following changes:

  • Motion Notification: A message that the advertiser device uses to notify the initiating device of a motion change.
  • Ranging Configuration: Includes a new Motion support field to tell the initiator to notify the responder of any changes in the peripheral movement from the responder.
  • Add new Wi-Fi PD technogoloy support in Ranging Capability and Ranging Configuration.
  • Deprecate Supported Bandwidth and Supported number of Receive chains fields in Wi-Fi NAN RTT Ranging Capability.

Endianness

Unless otherwise specified, all multi-byte numeric fields in the messages are in little-endian order.

Messages and message sequence

This section describes the messages and the sequence of the message exchange.

The following table shows all of the messages that are present in the OOB exchange:

Message Message ID
Ranging Capability Request 0x0
Ranging Capability Response 0x1
Ranging Configuration 0x2
Ranging Configuration Response (optional) 0x3
Stop Ranging 0x6
Stop Ranging Response (optional) 0x7
Motion Notification 0x8

Figures 1 and 2 illustrate how the message exchange is triggered for different communication channels.

For connection-based communication channels such as BLE GATT, the message exchange starts with the initiator device sending Ranging Capability Request to the responder device. The responder device replies by sending Ranging Capability Response, as shown in Figure 1:

Connection-based communication channel flow

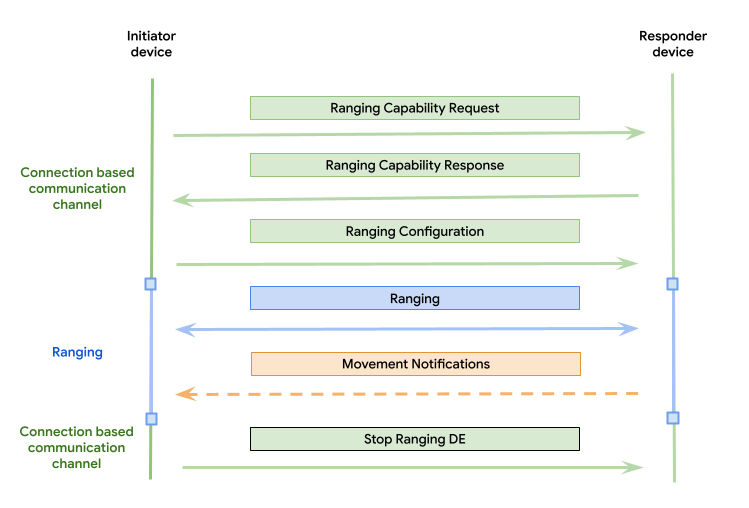

Figure 1. OOB message exchange using a connection-based communication channel.

For advertisement-based communication channels, the responder device starts by advertising Ranging Capability Response. In this case, the initiating device doesn't send Ranging Capability Request. Instead, after detecting the advertisement, when the initiating (initial scanner) device is ready, it responds by advertising Ranging Configuration as its first message, as shown in Figure 2:

Advertisement-based communication channel flow

Figure 2. OOB message exchange using an advertisement-based communication.

The rest of the message exchange is the same in both cases. The responder device starts ranging immediately after receiving the Ranging Configuration message. The responder device stops ranging after it receives or detects the Stop Ranging message.

In the connection-based flow, the responder device populates the capabilities only of the ranging technologies requested in the Ranging Capability Request message, while in the advertisement flow, the responder device must list all of its capabilities because there is no preceding capability request message.

The initiator device assumes it will receive only one response to any request message it sends. The responder device must not make any such assumption so that it can respond to any request in any order. This verifies that the responder device can respond to multiple consecutive Ranging Capability Request messages, or any other out of order messages, from the initiator device.

Technology transitioning

The OOB version lets the devices dynamically transition between different ranging technologies during a session. To facilitate this, the initiator can:

  • Send multiple Ranging Configuration messages to start new technologies.
  • Send multiple Stop Ranging messages to stop active technologies.

The ordering of these messages varies depending on the transitioning scheme supported by the responder:

  • Break-before-make: The initiator can transition to a new technology only by stopping the first with a Stop Ranging message before starting the second with a Ranging Configuration message.
  • Make-before-break: The initiator can start a new technology using a Ranging Configuration message before stopping existing technologies with a Stop Ranging message.

The responder must implement support for one of these transitioning schemes in accordance with the value of the supported technology transitioning field in its Ranging Capability Response.

Ranging technology IDs

The IDs of the ranging technologies are listed in the following table:

Ranging technology ID
UWB 0x0
CS 0x1
Wi-Fi NAN RTT 0x2
RSSI 0x3
Wi-Fi PD 0x4
RFU 0x5 - 0xFF

These IDs are used in the following tables where the ranging technology ID is required. For fields containing ranging technology bitfield, a bit corresponding to the index of the ID of the technology is set when that technology is included in the bitfield.

For example, RSSI has an ID value 3, but if RSSI is included in the ranging technology bitfield, then the bit with position of the ID (3) must be switched on (first bit being at position 0), which makes the resulting value of the bitfield 0x8. If both UWB and RSSI are included, then the value of the bitfield is 0x0A (both bits 0 and 3 switched on).

Message format

Each message consists of a header and a payload.

Message format

Figure 3. Message format.

Size: 2 bytes

Description: Common across all messages, the header is the first part that goes into a message. The header contains a version and the ID of the message type. The version field specifies the version of this specification that the contents of the message conform to. For more information on how versioning is used between devices on different versions, see Versioning. The header remains backward compatible across different versions, which means the use case can always parse it to determine the version and the ID of the message.

The header is summarized in the following table:

Octet Data type Description Value
0 uint8 Version
  • 0x1 - V1
  • 0x2 - V2
  • 0x3 - V3
1 uint8 Message ID
  • 0x0 - Ranging Capability Request message
  • 0x1 - Ranging Capability Response message
  • 0x2 - Ranging Configuration message
  • 0x3 - Ranging Configuration Response message (optional)
  • 0x6 - Stop Ranging message
  • 0x7 - Stop Ranging Response message (optional)
  • 0x8 - Motion Notification message
  • 0x4-0x5, 0x9 - 0xFF RFU

Payload

Size: Varies (depends on the type of the message)

Description: Payload is the last part of the message, after the header. The payload depends on the type of the message. The format for the payload of each individual message type is defined in the following sections.

Ranging Capability Request message payload

Size (header size not included): 2 bytes

Description: Sent by the initiator device to initiate the message exchange. This message is optional when the communication channel is based on advertising, in which case the responder device is required to advertise a Ranging Capability Response message as the first step. The initiator device (initial scanner) reads the advertisement and directly responds with a Ranging Capability Request message, avoiding the need for this message.

The Ranging Capability Request message payload is summarized in the following table:

Octet Data type Description Value
0 uint8*2 Requested ranging technologies bitfield
  • 0x01 - UWB
  • 0x02 - BLE channel sounding
  • 0x04 - Wi-Fi NAN RTT
  • 0x08 - BLE RSSI
  • 0x10 - Wi-Fi PD
  • RFU

Ranging Capability Response message payload

Size (header size not included): Varies (common part 2 bytes plus the size of each included ranging technology bytes)

Description: Sent by the responder as a response to a Ranging Capability Request message. This message payload consists of the common part, and ranging technology-specific parts (BLE CS, Wi-Fi NAN RTT, BLE RSSI), as shown in the following tables. Each ranging technology-specific part must be added only if that ranging technology is supported by the responder device and is requested in the Ranging Capability Request message. In the case of an advertisement communication channel, all supported ranging technologies must be included.

The common Ranging Capability Response message payload is summarized in the following table:

Octet Data type Description Value
0 uint8*2 Supported ranging technologies bitfield. Indicates the set of capabilities of ranging technologies that follow in the rest of the payload.
  • 0x01 - UWB
  • 0x02 - BLE channel sounding
  • 0x04 - Wi-Fi NAN RTT
  • 0x08 - BLE RSSI
  • 0x10 - Wi-Fi PD
  • RFU
2 byte array Ranging technology capability bytes. Repeated blocks of structs defined per technology.
Varies uint8 Indicates support for technology transitioning.
  • 0x00 - Break-before-make is supported.
  • 0x01 - Make-before-break is supported. The responder is capable of ranging with multiple technologies concurrently.
Varies uint16 Indicates the type of the responder device.
  • 0x00 - Unknown
  • 0x01 - Phone
  • 0x02 - Tablet
  • 0x03 - Tag
  • 0x04 - Wearable
  • 0x05 - Hearable
  • RFU

The UWB Ranging Capability Response message payload is summarized in the following table:

Octet Data type Description Value
0 uint8 Ranging technology ID 0x0 - UWB
1 uint8 Size Size of UWB capabilities bytes (including Technology ID and Size fields) in bytes.
2 uint8*2 UWB address 2 byte device UWB address.
4 uint8*4 Supported channels bitfield Bitfield of supported channels. Bit set to 0 indicates not supported, 1 indicates supported. Bit 0 corresponds to channel 0.
LSB == channel 0
MSB == channel 31
8 uint8*4 Supported preamble index bitfield Bitfield of supported preamble indexes. Bit set to 0 indicates not supported, 1 indicates supported. Bit 0 corresponds to preamble index 1.
LSB == preamble index 1
MSB == preamble index 32
12 uint8*4 Supported config IDs bitfield Bitfield of supported UWB config IDs. Bit set to 0 indicates not supported, 1 indicates supported.
LSB == config Id 0
MSB == config Id 31
16 uint8*2 Supported minimum ranging interval Indicates the fastest supported ranging interval in milliseconds. Allowed values (in ms):
  • 96
  • 120
  • 240
  • 600
18 uint8 Supported minimum slot duration Indicates the smallest supported slot duration in milliseconds. For example, if the device returns 1 ms then it's assumed it also supports 2 ms or higher slot durations. Allowed values (in ms):
  • 1
  • 2
19 Supported UWB device role bitfield Bitfield of the supported UWB roles. For example, if both supported the final field value is 0x3.
  • 0x1 - initiator role supported
  • 0x2 - responder role supported

The BLE CS Ranging Capability Response message payload is summarized in the following table:

Octet Data type Description Value
0 uint8 Ranging technology ID 0x1 - BLE CS
1 uint8 Size Size of BLE CS capabilities bytes (including Technology ID and Size fields) in bytes.
2 uint8 Supported security type bitfield Bitfield of supported security types for BLE CS.
  • 0x01 - CS_SECURITY_LEVEL_UNKNOWN
  • 0x02 - CS_SECURITY_LEVEL_ONE
  • 0x04 - CS_SECURITY_LEVEL_TWO
  • 0x08 - CS_SECURITY_LEVEL_THREE
  • 0x10 - CS_SECURITY_LEVEL_FOUR
3 uint8*6 Device address The address of the device used for BLE CS; in big-endian order.

The Wi-Fi NAN RTT Ranging Capability Response message payload is summarized in the following table:

Octet Data type Description Value
0 uint8 Ranging technology ID 0x2 - Wi-Fi NAN RTT
1 uint8 Size Size of BLE RSSI capabilities bytes (including Technology ID and Size fields) in bytes.
2 uint8 Supported features bitfield Bitfield of supported features.
  • 0x01 - 11mc capable
  • 0x02 - 11az capable
3 uint8 Supports periodic ranging
  • 0x0 - periodic ranging not supported
  • 0x1 - periodic ranging supported
4 uint8 Supported bandwidth DEPRECATED This information helps derive the achievable ranging accuracy using Wi-Fi NAN and can help apps determine whether to use UWB, BLE CS, BLE RSSI, or Wi-Fi NAN for ranging.
  • 0x00 - 20 MHz
  • 0x01 - 40 MHz
  • 0x02 - 80 MHz
  • 0x03 - 160 MHz
  • 0x04 - 80+80 MHz
  • 0x05 - 320 MHz
  • RFU
5 uint8 Supported number of receive chains DEPRECATED This information helps derive the achievable ranging accuracy using Wi-Fi NAN and can help apps determine whether to use UWB, BLE CS, BLE RSSI, or Wi-Fi NAN for ranging.
  • 0x00 - Undefined
  • 0x01 - 1 RX chain
  • 0x02 - 2 RX chains
  • 0x03 - 3 RX chains
  • 0x04 - 4 RX chains

The BLE RSSI Ranging Capability Response message payload is summarized in the following table:

Octet Data type Description Value
0 uint8 Ranging technology ID 0x3 - BLE RSSI
1 uint8 Size The size of BLE RSSI capabilities bytes (including Technology ID and Size fields) in bytes
2 uint8*6 Device address The address of the device used for BLE RSSI; in big-endian order

The Wi-Fi PD Ranging Capability Response message payload is summarized in the following table:

Octet Data type Description Value
0 uint8 Ranging technology ID 0x4 - Wi-Fi PD
1 uint8 Size The size of Wi-Fi PD capabilities bytes (including Technology ID and Size fields) in bytes
2 uint8 Suppored Features Bitmap
  • b0 - 11mc capable
  • b1 - 11az capable
3 uint8 PansMode Bitmap
  • b0 - Unauthenticated PASN mode
  • b1 - Authenticated PASN mode
4 uint8*6 Device Address The address of the device used for Wi-Fi PD; in big-endian order.
10 uint8*2 Min ranging interval 802.11mc Minimum ranging interval supported in big-endian format for 11mc
12 uint8*2 Min ranging interval 802.11az Minimum ranging interval supported in big-endian format for 11az
14 uint8 Max preamble type
  • 0 - PREAMBLE_LEGACY
  • 1 - PREAMBLE_HT
  • 2 - PREAMBLE_VHT
  • 3 - PREAMBLE_HE
  • 4 - PREAMBLE_EHT
Assuming all lower preambles will be supported.
15 uint8 Max channel width
  • 0 - CHANNEL_WIDTH_20MHZ
  • 1 - CHANNEL_WIDTH_40MHZ
  • 2 - CHANNEL_WIDTH_80MHZ
  • 3 - CHANNEL_WIDTH_160MHZ
  • 4 - CHANNEL_WIDTH_80MHZ_PLUS_MHZ
  • 5 - CHANNEL_WIDTH_320MHZ
Assuming all lower channel widths will be supported.
16 uint8*2 Supported channel frequency
  • b0 - Channel 1
  • b1 - Channel 11
  • b2 - Channel 36
  • b3 - Channel 40
  • b4 - Channel 44
  • b5 - Channel 48
  • b6 - Channel 153
  • b7 - Channel 157
  • b8 - Channel 161
  • b9 - Channel 165
  • b10-b15 - RFU

Ranging Configuration message payload

Size (header size not included): Varies (common part 4 bytes plus the size of each included ranging technology bytes).

Description: This message is sent by the initiator and it contains the configurations that each ranging technology can start ranging with. The responder device must try to start ranging with each indicated ranging technology upon receiving this message. This message payload consists of the common part, and ranging technology-specific parts (UWB, BLE CS, Wi-Fi NAN RTT, BLE RSSI), as shown in the following tables.

The common Ranging Configuration message payload is summarized in the following table:

Octet Data type Description Value
0 uint8*2 Ranging technologies configuration set bitfield Bitfield of ranging technologies that this message contains configuration data for and for which configuration parameters must be set.
  • 0x01 - UWB
  • 0x02 - BLE channel sounding
  • 0x04 - Wi-Fi NAN RTT
  • 0x08 - BLE RSSI
  • 0x10 - Wi-Fi PD
  • RFU
2 uint8*2 Bitfield RFU. Must be set to the same value as the Ranging technologies configuration set bitfield field.
4 byte array Ranging technologies configurations bytes Repeated blocks of structs defined per technology
varies uint8 Motion support Motion Notification requested
  • 0x0 - Indicates no motion data required by the initiator device.
  • 0x1 - Indicates the initiator device requires the motion data from the peer device.

The UWB Ranging Configuration message payload is summarized in the following table:

Octet Data type Description Value
0 uint8 Ranging technology ID 0x0 - UWB
1 uint8 Size Size of UWB configuration (including Technology ID and Size fields) in bytes
2 uint8*2 UWB address 2 byte device UWB address
4 uint8*4 Session ID Generated session ID. Session ID is a unique identifier for the ranging session between the phone and the peripheral.
8 uint8 Selected config ID Selected config ID number in integer. The config ID specifies the timing parameters and the type of security that must be used for the UWB ranging session.
9 uint8 Selected channel Selected channel for the UWB ranging session
10 uint8 Selected preamble index Selected preamble index for the UWB ranging session
11 uint8*2 Selected ranging interval Selected ranging interval rate in milliseconds. Allowed values (in ms):
  • 96
  • 120
  • 240
  • 600
13 uint8 Selected slot duration Selected slot duration in milliseconds. Allowed values (in ms):
  • 1
  • 2
14 uint8 Session key length Length of the session key in bytes
15 byte array Session key Session key. If S-STS is used then the first two bytes are VENDOR ID and the following six bytes are STATIC STS IV. If P-STS is used, this is either a 16 byte or 32 byte session key. The type of security used is determined by the config ID.
varies uint8*2 Country code ISO 3166-1 alpha-2 country code, represented by two ASCII characters
varies uint8 Selected device role
  • 0x01 - Initiator
  • 0x02 - Responder
varies uint8 Selected device mode
  • 0x01 - Controller
  • 0x02 - Controlee

The BLE CS Ranging Configuration message payload is summarized in the following table:

Octet Data type Description Value
0 uint8 Ranging technology ID 0x1 - BLE CS
1 uint8 Size Size of BLE CS configuration (including Technology ID and Size fields) in bytes
2 uint8 Selected security type Selected security type. Allowed values:
  • 0x0 - CS_SECURITY_LEVEL_UNKNOWN
  • 0x1 - CS_SECURITY_LEVEL_ONE
  • 0x2 - CS_SECURITY_LEVEL_TWO
  • 0x3 - CS_SECURITY_LEVEL_THREE
  • 0x4 - CS_SECURITY_LEVEL_FOUR
3 uint8*6 Device address The address of the device used for BLE CS; in big-endian order

The Wi-Fi NAN RTT Ranging Configuration message payload is summarized in the following table:

Octet Data type Description Value
0 uint8 Ranging technology ID 0x2 - Wi-Fi NAN RTT
1 uint8 Size Size of Wi-Fi NAN RTT configuration (including Technology ID and Size fields) in bytes
2 uint8 Service name length Length of the Service name field in bytes. Refer to Wi-Fi Aware Specification v4.0 section 1.3.3 Table 1. Definitions.
3 byte array Service name Service name. Refer to Wi-Fi Aware Specification v4.0 section 1.3.3 Table 1. Definitions.
varies uint8 Device role
  • 0x0 - Responder (NAN service publisher)
  • 0x1 - Initiator (NAN service subscriber)
varies uint8 Use periodic ranging
  • 0x0 - Periodic ranging disabled
  • 0x1 - Periodic ranging enabled

The BLE RSSI Ranging Configuration message payload is summarized in the following table:

Octet Data type Description Value
0 uint8 Ranging technology ID 0x3 - BLE RSSI
1 uint8 Size Size of BLE RSSI configuration (including Technology ID and Size fields) in bytes
2 uint8*6 Device address The address of the device used for BLE RSSI; in big-endian order

The Wi-Fi PD Ranging Configuration message payload is summarized in the following table:

Octet Data type Description Value
0 uint8 Ranging technology ID 0x4 - Wi-FI PD
1 uint8 Size Size of Wi-Fi NAN PD configuration (including Technology ID and Size fields) in bytes
2 uint8 Feature
  • 0x01 - 11mc
  • 0x02 - 11az
3 uint8*6 Mac address Initiator mac address
9 uint8*2 Ranging interval Ranging interval in ms
11 uint8 Selected preamble
  • 0 - PREAMBLE_LEGACY
  • 1 - PREAMBLE_HT
  • 2 - PREAMBLE_VHT
  • 3 - PREAMBLE_HE
  • 4 - PREAMBLE_EHT
12 uint8 Selected channel width
  • 0 - CHANNEL_WIDTH_20MHZ
  • 1 - CHANNEL_WIDTH_40MHZ
  • 2 - CHANNEL_WIDTH_80MHZ
  • 3 - CHANNEL_WIDTH_160MHZ
  • 4 - CHANNEL_WIDTH_80MHZ_PLUS_MHZ
  • 5 - CHANNEL_WIDTH_320MHZ
13 uint8 Selected channel
  • 0 - Channel 1
  • 1 - Channel 11
  • 2 - Channel 36
  • 3 - Channel 40
  • 4 - Channel 44
  • 5 - Channel 48
  • 6 - Channel 153
  • 7 - Channel 157
  • 8 - Channel 161
  • 9 - Channel 165
14 uint8 Selected PASN Mode
  • 0x01 - Unauthenticated PASN mode
  • 0x02 - Authenticated PASN mode
Note: This field is the end of the packet for unauthenticated PASN mode.
15 byte array Device identity key 16 byte fixed array
Note:This field is valid only for authenticated PASN mode, must not be set for unauthenticated PASN mode
31 uint8 Password length Length of password.
Note: This field is valid only for authenticated PASN mode, must not be set for unauthenticated PASN mode.
varies byte array Password Password as byte array.
Note: This field is valid only for authenticated PASN mode, must not be set for unauthenticated PASN mode.

Ranging Configuration Response message payload

Size (header size not included): 2 bytes

Description: This message is sent by the responder as a response to the Ranging Configuration message. This message is optional; it's required only when the used communication channel requires an explicit response for each request.

The Ranging Configuration Response message payload is summarized in the following table:

Octet Data type Description Value
0 uint8*2 Ranging technologies configuration set successfully bitfield Bitfield of ranging technologies that were set successfully. The bitfield sets the ranging technology bit to 1 if the technology was requested and set successfully, and 0 otherwise.
  • 0x01 - UWB
  • 0x02 - BLE channel sounding
  • 0x04 - Wi-Fi NAN RTT
  • 0x08 - BLE RSSI
  • 0x10 - Wi-Fi PD
  • RFU

Stop Ranging message payload

Size (header size not included): 2 bytes

Description: This message is sent by the initiator device when it's time to stop ranging with the specified ranging technology.

The Stop Ranging message payload is summarized in the following table:

Octet Data type Description Value
0 uint8*2 Ranging technologies to stop bitfield Bitfield of ranging technologies that must stop ranging. Bit set to 1 indicates the ranging technology must stop ranging, and 0 indicates the ranging technology either wasn't ranging in the first place, or that it must continue ranging if it was already ranging. For some ranging technologies (like CS) this is a no-op because ranging is initiated and stopped only on the initiator side.
  • 0x01 - UWB
  • 0x02 - BLE channel sounding
  • 0x04 - Wi-Fi NAN RTT
  • 0x08 - BLE RSSI
  • 0x10 - Wi-Fi PD
  • RFU

Stop Ranging Response message payload

Size (header size not included): 2 bytes

Description: This message is sent by the responder as a response to the Stop Ranging message. This message is optional, it's required only when the used communication channel requires an explicit response for each request.

The Stop Ranging Response message payload is summarized in the following table:

Octet Data type Description Value
0 uint8*2 Ranging technologies stopped successfully bitfield Bitfield of ranging technologies that stopped ranging successfully. The bitfield sets the ranging technology bit to 1 if the technology was requested to be stopped and if it stopped successfully, and 0 otherwise.
  • 0x01 - UWB
  • 0x02 - BLE channel sounding
  • 0x04 - Wi-Fi NAN RTT
  • 0x08 - BLE RSSI
  • 0x10 - Wi-Fi PD
  • RFU

Motion Notification message payload

Size (header size not included): 1 byte

Description: The responder device sends this message to inform the initiating device of any changes in its motion status.

Octet Data type Description Value
0 uint8 Motion
  • 0x0 - Not detected
  • 0x1 - Slight movement
  • 0x2 - Moderate movement
  • 0x3 - Large movement
  • RFU
Movement threshold must be configured to detect an orientation change of ±X° along any two axes of the accessory.
  • Not detected: < 5°
  • Slight movement: 5° - 7°
  • Moderate movement: 7° - 10°
  • Large movement: > 10°

Versioning

The version of the specification is contained in the header of each message. This section defines how communication is conducted when one of the devices (either the initiator or the responder) is on an older version than the other device.

Case 1: Connection-based communication channel

This section describes cases that use a connection-based communication channel, where Ranging Capability Request is the first message sent by the initiator device.

Case 1.a: Initiator supports newer version, responder supports older version of specification.

The initiator device sends the Ranging Capability Request message with the newer version. The responder device supports only the older version, so it responds with that, and then the responder's older version is used for the rest of the message exchange. This means that the Ranging Capability Request message has to be backward compatible.

Case 1.b: Initiator supports older version, responder supports newer version of specification.

The responder device sees that the initiator device isn't capable of using the newer version so it sends messages only using the older version requested initially by the initiator device.

Case 2: Advertisement-based communication channel

This section describes cases that use an advertisement-based communication channel, where the responder device advertises Ranging Capability Request directly, without an initial request.

Case 2.a: Initiator supports newer version, responder supports older version of specification.

The older version set in the Ranging Capability Response advertisement is used for the rest of the communication.

Case 2.b: Initiator supports older version, responder supports newer version of specification.

The newer version of the Ranging Capability Response advertisement must be backward compatible so that the initiator device can read the message even though it's using a newer version. The initiator device then sends the Ranging Configuration message using the older version it supports. This is the version that is used for the rest of the communication.

To make sure Ranging Capability Response is backward compatible, any new fields that are added to the next version of this specification in the Ranging Capability Response message payload must be appended to the end of the payload, and none of the existing fields can be modified. When parsing the configuration, if the indicated size is bigger than expected, additional fields must be ignored by any device that can understand only the older version of the specification.

Fragmentation

This specification is communication channel agnostic, so it doesn't define how to fragment the message payload in cases where a single message is too big to fit into a transfer packet of the communication channel used. The Ranging module expects to receive each message in its full form. The responsibility of the fragmentation lies on the implementor of the OOB communication channel.

Ranging-technology-specifics

This section contains details specific to ranging technology.

Ultra-wideband (UWB) specifics

This section describes ultra-wideband specific details.

Config IDs

OOB configuration data exchanged for UWB doesn't contain a full set of available configurable parameters that UWB requires to start an UWB ranging session. This is because some parameters are implicitly selected by the chosen config ID.

Each config ID is a set of predefined UWB configuration parameters that is documented in UwbRangingParams. The responder device sends a list of all config IDs that it supports as part of the supports_technology_transitioning supported config IDs that is used. This allows for a smaller set of config parameters to be exchanged during OOB. It also limits the amount of possible combinations of parameters that can be used for ranging with UWB, which makes testing of only allowed combinations of parameters possible.

Requesting capabilities after each UWB session

After stopping an existing UWB session and before starting a new UWB session, the initiator device must request the capabilities of the responder device and set the configuration parameters again, because the UWB address can rotate as soon as the current ranging session ends.

BLE channel sounding (CS) specifics

This section describes channel sounding specific details.

Required bond between devices

An existing bond between the initiator and the responder device is required for ranging using channel sounding to work. This specification doesn't provide a way for creating a bond between devices. The user of the Ranging APIs must establish this bond between the devices.

Action required by the responder side for CS

In UWB, both devices are required to call the UWB start ranging and stop ranging API explicitly. In contrast, for CS, only the initiator device is required to start CS ranging by calling the Bluetooth (BT) stack. The rest of the initialization on the responder side happens in band through BT. This means that upon receiving the Ranging Configuration message or the Stop Ranging message for CS, the responder side doesn't have to do anything if BT is enabled. The responder device could use those messages as a trigger to update the UI or, for example, blink the device LEDs.
