Fold lock behavior setting

OEMs can configure an option on foldable devices that lets users choose how the outer screen behaves when they fold the device from an unlocked and unfolded state.

The setting is located in Settings > Display > Continue using apps on fold. The user has the following three options:

  • Always: When the user folds the device, the front display always turns on and remains unlocked.
  • Swipe up to continue: When the user folds the device, the device shows the keyguard without requiring authentication, unless an app is holding a wakelock, in which case the device stays awake on the app. This is the default setting.
  • Never: When the user folds the device, the device locks and the front display turns off.

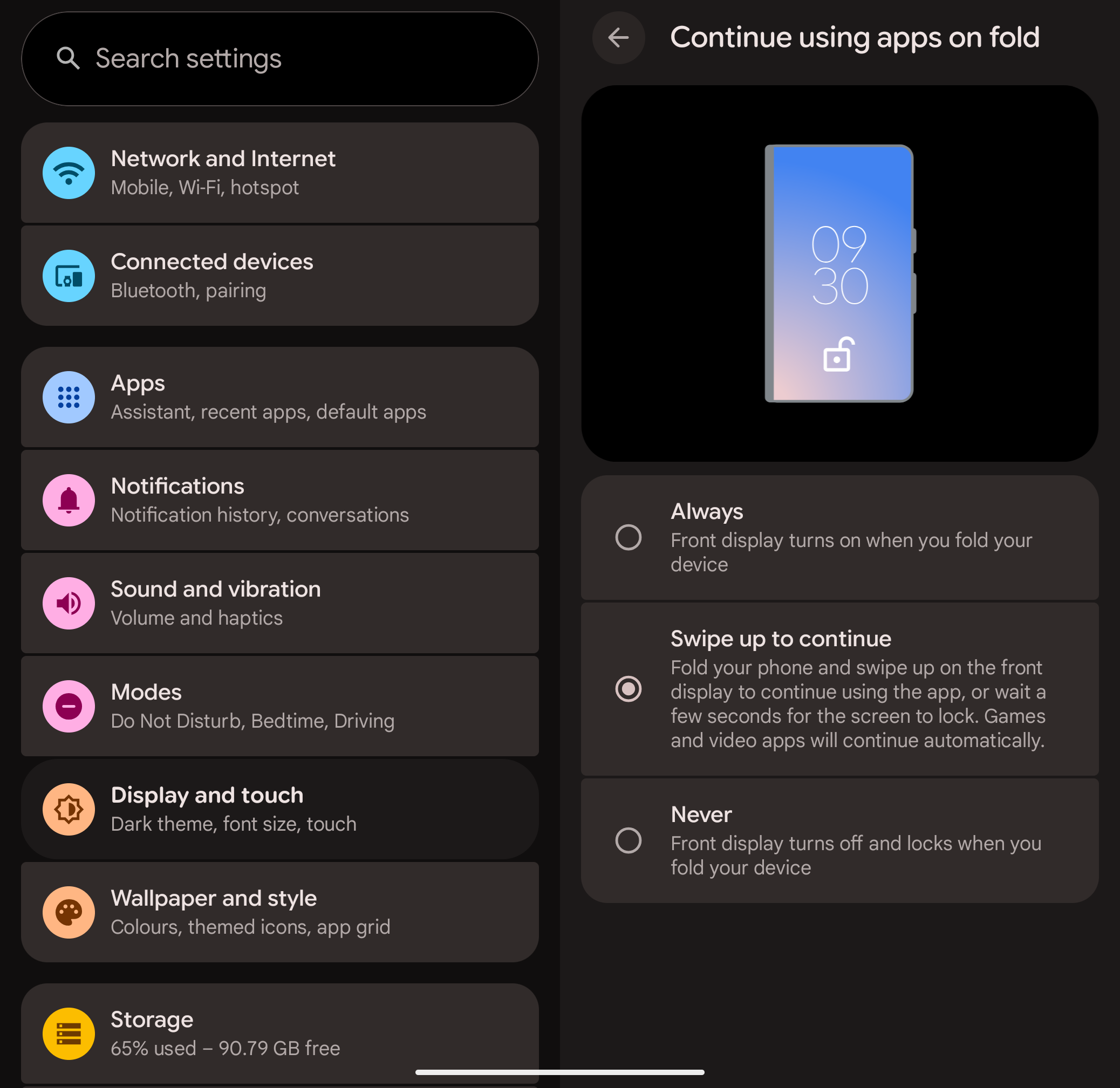

Fold lock behavior setting page

Figure 1. Fold lock behavior setting.

Configure fold lock behavior setting

To display the fold lock behavior setting in Settings, populate the config_fold_lock_behavior boolean in your device's overlay config.xml file:

  <!-- Whether to show Fold lock behavior setting feature in Settings app -->
  <bool name="config_fold_lock_behavior">true</bool>

Implementation details

The fold lock behavior is controlled by a setting and several backend classes.

Setting and UI

The value of the FOLD_LOCK_BEHAVIOR setting is persisted as a string, which corresponds to the user's selection in Settings > Display > Continue using apps on fold:

The setting is inflated from display_settings.xml. The setting page UI is implemented in the FoldLockBehaviorSettings fragment, and the preference is managed by FoldLockBehaviorPreferenceController.

Backend logic

When the device is folded, LogicalDisplayMapper and PowerManager control device behavior as follows:

  1. LogicalDisplayMapper reads the FOLD_LOCK_BEHAVIOR setting value using FoldSettingProvider.
  2. Based on the setting value:
    • If the value is stay_awake_on_fold_key, the device remains awake.
    • If the value is selective_stay_awake_key or sleep_on_fold_key, LogicalDisplayMapper sends a #goToSleep signal to PowerManager.
      • For selective_stay_awake_key, the #goToSleep signal includes the flag PowerManager.GO_TO_SLEEP_FLAG_SOFT_SLEEP. This causes the device to show the keyguard without requiring authentication.
      • For sleep_on_fold_key, the #goToSleep signal is sent without this flag, causing the device to lock.
